What is data migration?

Data Migration is the transfer of the existing historical data to new storage, system, or file format. This process is not as simple as it may sound. It involves a lot of preparation and post-migration activities including planning, creating backups, quality testing, and validation of results. The migration ends only when the old system, database, or environment is shut down.

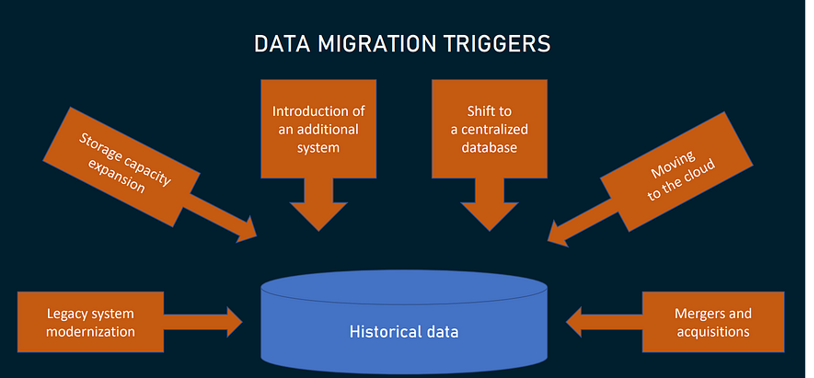

Usually, data migration comes as a part of a larger project such as

• legacy software modernization or replacement,
• the expansion of system and storage capacities,
• the introduction of an additional system working alongside the existing application,
• the shift to a centralized database to eliminate data silos and achieve interoperability,
• moving IT infrastructure to the cloud, or
• merger and acquisition (M&A) activities when IT landscapes must be consolidated into a single system.

Data migration is sometimes confused with other processes involving massive data movements. Before we go any further, it’s important to clear up the differences between data migration, data integration, and data replication.

Data migration vs data integration

Unlike migration dealing with the company’s internal information, integration is about combining data from multiple sources outside and inside the company into a single view. It is an essential element of the data management strategy that enables connectivity between systems and gives access to the content across a wide array of subjects. Consolidated datasets are a prerequisite for accurate analysis, extracting business insights, and reporting.

Data migration is a one-way journey that ends once all the information is transported to a target location. Integration, by contrast, can be a continuous process, that involves streaming real-time data and sharing information across systems.

Main types of data migration

Storage migration

Storage migration occurs when a business acquires modern technologies discarding out-of-date equipment. This entails the transportation of data from one physical medium to another or from a physical to a virtual environment. Examples of such migrations are when you move data

• from paper to digital documents,
• from hard disk drives (HDDs) to faster and more durable solid-state drives (SSDs), or
• from mainframe computers to cloud storage.

Database migration

A database is not just a place to store data. It provides a structure to organize information in a specific way and is typically controlled via a database management system (DBMS).

So, most of the time, database migration means

• an upgrade to the latest version of DBMS (so-called homogeneous migration),
• a switch to a new DBMS from a different provider — for example, from MySQL to PostgreSQL or from Oracle to MSSQL (so-called heterogeneous migration)

Application migration

When a company changes an enterprise software vendor — for instance, a hotel implements a new property management system or a hospital replaces its legacy EHR system — this requires moving data from one computing environment to another. The key challenge here is that old and new infrastructures may have unique data models and work with different data formats.

Data center migration

A data center is a physical infrastructure used by organizations to keep their critical applications and data. Put more precisely, it’s the very dark room with servers, networks, switches, and other IT equipment. So, data center migration can mean different things: from relocation of existing computers and wires to other premises to moving all digital assets, including data and business applications to new servers and storages.

Business process migration

This type of migration is driven by mergers and acquisitions, business optimization, or reorganization to address competitive challenges or enter new markets. All these changes may require the transfer of business applications and databases with data on customers, products, and operations to the new environment.

Cloud migration

Cloud migration is a popular term that embraces all the above-mentioned cases, if they involve moving data from on-premises to the cloud or between different cloud environments. Gartner expects that by 2024 the cloud will attract over 45 percent of IT spending and dominate ever-growing numbers of IT decisions.

Depending on volumes of data and differences between source and target locations, migration can take from some 30 minutes to months and even years. The complexity of the project and the cost of downtime will define how exactly to unwrap the process.

Data migration process

No matter the approach, the data migration project goes through the same key phases — namely

• planning,
• data auditing and profiling,
• data backup,
• migration design,
• execution,
• testing, and
• post-migration audit.

Planning: create a data migration plan and stick to it

Data migration is a complex process, and it starts with the evaluation of existing data assets and careful designing of a migration plan. The planning stage can be divided into four steps.

Step 1 — refine the scope. The key goal of this step is to filter out any excess data and to define the smallest amount of information required to run the system effectively. So, you need to perform a high-level analysis of source and target systems, in consultation with data users who will be directly impacted by the upcoming changes.

Step 2 — assess source and target systems. A migration plan should include a thorough assessment of the current system’s operational requirements and how they can be adapted to the new environment.

Step 3 — set data standards. This will allow your team to spot problem areas across each phase of the migration process and avoid unexpected issues at the post-migration stage.

Step 4 — estimate budget and set realistic timelines. After the scope is refined and systems are evaluated, it’s easier to select the approach (big bang or trickle), estimate resources needed for the project, set schedules, and deadlines. According to Oracle estimations, an enterprise-scale data migration project lasts six months to two years on average.

Data auditing and profiling: employ digital tools

This stage is for examining and cleansing the full scope of data to be migrated. It aims at detecting possible conflicts, identifying data quality issues, and eliminating duplications and anomalies prior to the migration.

Auditing and profiling are tedious, time-consuming, and labor-intensive activities, so in large projects, automation tools should be employed. Among popular solutions are Open Studio for Data Quality, Data Ladder, SAS Data Quality, Informatica Data Quality, and IBM InfoSphere QualityStage, to name a few.

Data backup: protect your content before moving it

Technically, this stage is not mandatory. However, best practices of data migration dictate the creation of a full backup of the content you plan to move — before executing the actual migration. As a result, you’ll get an extra layer of protection in the event of unexpected migration failures and data losses.

Migration design: hire an ETL specialist

The migration design specifies migration and testing rules, clarifies acceptance criteria, and assigns roles and responsibilities across the migration team members.

Though several technologies can be used for data migration, extract, transform, and load (ETL) is the preferred one. It makes sense to hire an ETL developer — or a dedicated software engineer with deep expertise in ETL processes, especially if your project deals with large data volumes and complex data flow.

At this phase, ETL developers or data engineers create scripts for data transition or choose and customize third-party ETL tools. An integral part of ETL is data mapping. In the ideal scenario, it involves not only an ETL developer, but also a system analyst knowing both source and target system, and a business analyst who understands the value of data to be moved.

The duration of this stage depends mainly on the time needed to write scripts for ETL procedures or to acquire appropriate automation tools. If all required software is in place and you only have to customize it, migration design will take a few weeks. Otherwise, it may span a few months.

Execution: focus on business goals and customer satisfaction

This is when migration — or data extraction, transformation, and loading — actually happens. In the big bang scenario, it will last no more than a couple of days. Alternatively, if data is transferred in trickles, execution will take much longer but, as we mentioned before, with zero downtime and the lowest possible risk of critical failures.

If you’ve chosen a phased approach, make sure that migration activities don’t hinder usual system operations. Besides, your migration team must communicate with business units to refine when each sub-migration is to be rolled out and to which group of users.

Data migration testing: check data quality across phases

In fact, testing is not a separate phase, as it is carried out across the design, execution, and post-migration phases. If you have taken a trickle approach, you should test each portion of migrated data to fix problems in a timely manner.

Frequent testing ensures the safe transit of data elements and their high quality and congruence with requirements when entering the target infrastructure. You may learn more about the details of testing the ETL process from our dedicated article.

Post-migration audit: validate results with key clients

Before launching migrated data in production, results should be validated with key business users. This stage ensures that information has been correctly transported and logged. After a post-migration audit, the old system can be retired.
